ภาษาไทย
หมวดหมู่สินค้า: TOA
รหัส : PS15TOA1607
สินค้ารับประกัน 1 ปี
ราคายังไม่รวมภาษีมูลค่าเพิ่ม 7% ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 42,000.00 บาท
ลดทันที 5%
ราคา 39,900.00 บาท
04 กุมภาพันธ์ 2569
ผู้ชม 4 ผู้ชม

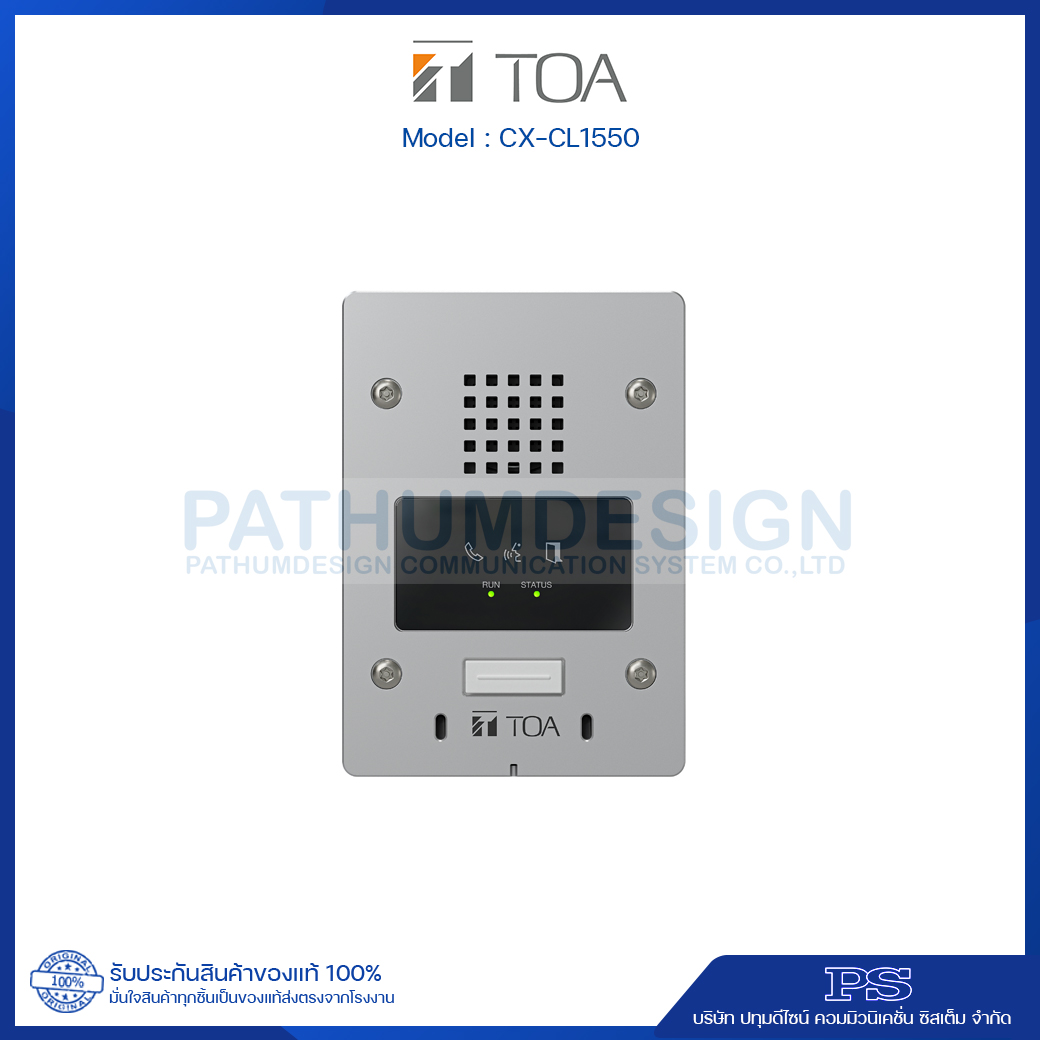

CX-CL1550 Call Station
- Full-duplex hands-free communication with echo canceller
- Dual MEMS mics and array processing for clear pickup
- Supports key audio/video codecs like G.722 & H.264
- IP65/IK08 compliant for outdoor durability
- Compatible with SIP, HTTP, and other protocols
- 4 control inputs and 4 outputs for external device integration
- Flush or wall mounting for flexible installation
- PoE (IEEE802.3af compliant) or 12 V DC power
Specifications
| Model | CX-CL1550 |
| Power Sourc | PoE (IEEE802.3af compliant) or 12 V DC (use of the optional AC adapter) |
| Current Consumption | PoE: 140 mA, 12 V DC (AC adaptor): 390 mA |
| Power Consumption | 5.5 W |
| Speech Method | Hands-free: Full-duplex (echo canceler + voice switch) |
| Audio Bandwidth | Conversation/Broadcast: 300 Hz - 7 kHz |
| Hands-free | Speaker: Dynamic type speaker, maximum output 2.0 W Microphone: Omni-directional digital MEMS microphone x 2 |
| External Speaker | Maximum output 2.0 W, 8 0, push-in terminal (2 pins) |
| Signal Processing | Input channel: Gain, EQ x 2, Comp, AGC, noise canceler, echo canceler, voice switch, microphone array, speech intelligibility filter Output channel: Gain, EQ x 7, ANC |
| Network | Network I /F: 100Base-TX Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, RSTP Audio packet transmission method: Unicast, Multicast Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999) Connector: RJ45 connector x 2 (LAN A ( PoE compatible), LAN B ( PoE incompatible)) Network cable: UTP (Cats or greater) |
| Audio Transmission | Sampling frequency: 16 kHz, 8 kHz (controllable on the software) Audio codec: PCM, G. 722, G. 711 µ-Law/A-Law Quantization bit depth: 16-bit Voice packet loss recovery: Silence insertion |
| Operation | Direct key x 1 |
| Indicators | LED indicators: RUN (green) x 1, STATUS (yellow, red, green) x 1, Calling indicator (yellow) x 1, Conversation indicator (green) X 1, Unlock indicator (green) x 1 |
| Control Input | 4 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 5 mA or less, push-in terminal (5 pins) |
| Control Output | 1 channel, relay contact output, withstand voltage: 30 V DC, maximum control current: 1 A, push-in terminal (2 pins) 4 channels, open collector output, maximum contact capacity: 30 V DC/100 mA, push-in terminal (5 pins) 4 channels, open collector output, maximum contact capacity: 30 V DC/100 mA, push-in terminal (5 pins) |
| Installation Method | Flush-mounting or wall-mounting |
| Impact Resistance | IKO8 |
| Dust/Water Protection | IP65 (Note that front cover edges must be sealed at installation.) |
| Operating Temperature | -40 ° c to +60° c |
| Operating Humidity | 90 %RH (no condensation) |
| Finish | Case: Die-cast aluminum, silver, mat finish, paint Panel: PC resin |
| Dimensions | 115 (W) x 162 (H) x 72.2 (D) mm |
| Weight | 750g |
| Accessory | Waterproof washer ·-4, Tamper-proof screw ·-4 |
| Option | AC adapter: AD-1210P, AD-121 SP |
| Compatible Box | For flush mount: 3-gang electrical box or Back Box YC-150 (option) For wall mount: Wall-mount Box YS-13A (option) |
