หมวดหมู่สินค้า: TOA
รหัส : PS15TOA1610
สินค้ารับประกัน 1 ปี
ราคายังไม่รวมภาษีมูลค่าเพิ่ม 7% ค่าแรงติดตั้ง และค่าจัดส่ง
จาก 76,000.00 บาท
ลดทันที 5.00%
ราคา 72,200.00 บาท
04 กุมภาพันธ์ 2569
ผู้ชม 4 ผู้ชม

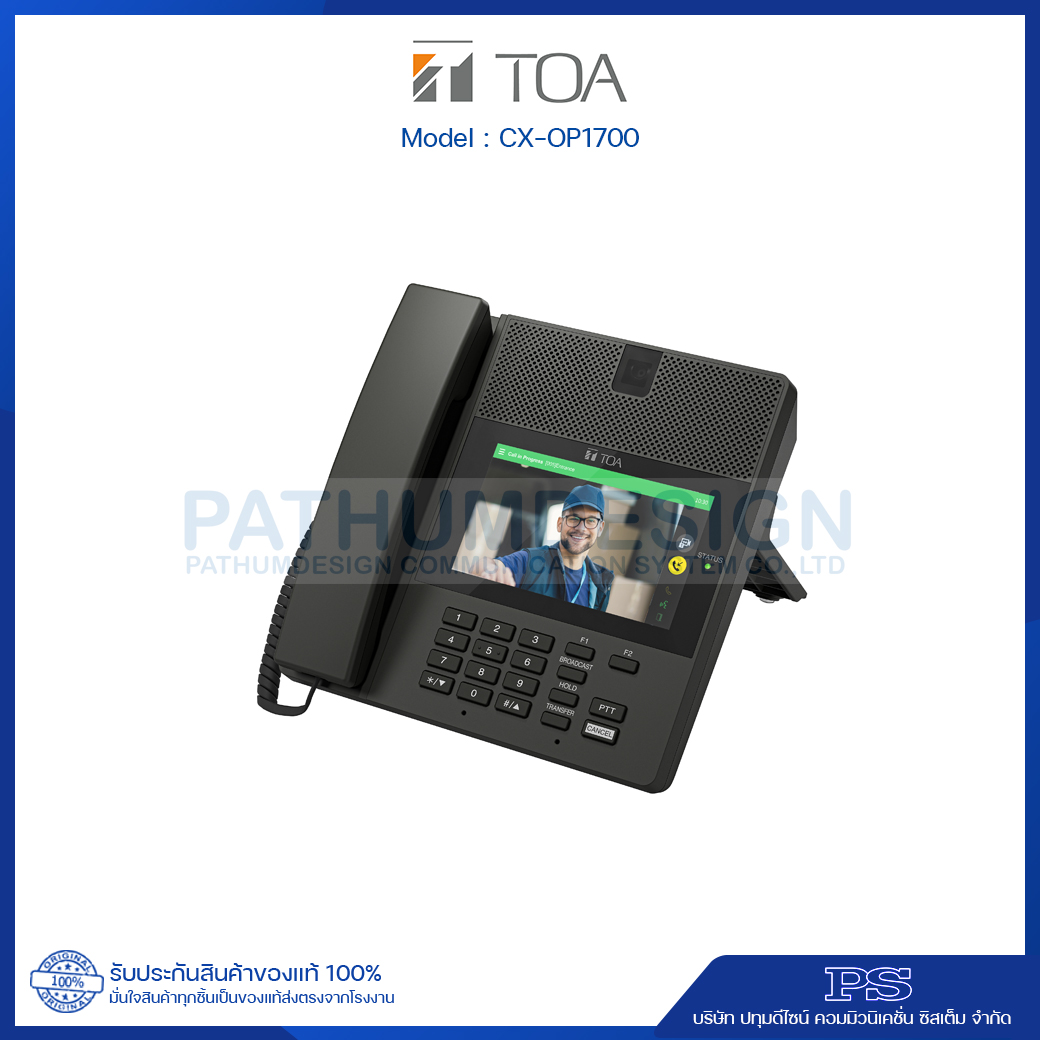

CX-OP1700 Video Operation Station
- 5-inch touch screen LCD with intuitive operation keys
- Full-duplex communication via handset and hands-free with echo canceller
- Built-in HD camera with 69° horizontal viewing angle
- Dual MEMS mics and array processing for clear pickup
- 3.5mm headset jack for versatile audio output
- Supports key audio/video codecs including G.722 and H.264
- 2 control inputs and 2 open collector outputs for external device integration
- Desktop or wall mounting options with optional bracket
- PoE (IEEE802.3af compliant) or 12 V DC power
Specifications
| Model | CX-OP1700 |
| Power Source | PoE (IEEE802.3af compliant) or 12 V DC (use of the optional AC adapter) |
| Current Consumption | PoE: 210 mA, 12 V DC (AC adapter): 680 mA |
| Power Consumption | 8.5 W |
| Speech Method | Handset: Full-duplex Hands-free: Full-duplex (echo canceler + voice switch), Half-duplex (PTT) |
| Audio Bandwidth | Conversation: 300 Hz - 7 kHz Broadcast: 300 Hz - 16 kHz |
| Hands-free | Speaker: Dynamic type speaker, maximum output 2.0 W Microphone: Omni-directional digital MEMS microphone x 2 |
| Handset | Receive path: Dynamic type speaker Send path: Electret condenser microphone |
| Headset | Speaker: Dynamic type speaker, 32Ω, ø3.5 mm mini jack Microphone: Electret condenser microphone, ø3.5 mm mini jack |
| External Speaker | Maximum output 2.0 W, 8 0, push-in terminal (2 pins) |
| Signal Processing | Input channel: Gain, EQ x 2, Comp, AGC, noise canceler, echo canceler, voice switch, microphone array, speech intelligibility filter Output channel: Gain, EQ x 7 |
| Network | Network I /F: 1 00Base-TX Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, I GMP, NTP, SIP, FTP, RSTP Audio packet transmission method: Unicast, Multicast Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999) Connector: RJ45 connector x 2, LAN A (PoE compatible), LAN B (PoE compatible) Network cable: UTP (Cat5 or greater) |
| Audio Transmission | Sampling frequency: 16 kHz, 8 kHz (controllable on the software) Audio codec: PCM, G.722, G.711 µ-Law/A-Law Quantization bit depth: 16-bit Voice packet loss recovery: Silence insertion |
| Video Transmission | Video codec: H.264, MJPEG Resolution: HD 1280 x 720 (max. l Frame rate: 20 fps (max.) |
| Operation | Touch screen LCD, Dial key, Function 1, Function 2, Broadcast, Hold, Transfer, PTT, Cancel |
| Indicators | Touch screen LCD: 5" TFT color LCD, 1280 x 780 LED indicators: STATUS (yellow, red, green) x 1 |
| Camera | Image device: 1/2.9 type CMOS Number of effective pixels: 1280 x 720 (max.) Angle of view: horizontal 69°, vertical 37.4 ° |
| Control Input | 2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 5 mA or less, push-in terminal (3 pins) |
| Control Output | 2 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, push-in terminal (3 pins) |
| Installation Method | Desktop installation or wall mounting (Wall mounting needs an optional bracket.) |
| Operating Temperature | 0° c to +40 ° c |
| Operating Humidity | 90 %RH (no condensation) |
| Dust/Water Protection | Conforming to IP3X |
| Finish | ABS resin, dark gray |
| Dimensions | 200 (W) X 81.4 (H) X 200 (D) mm |
| Weight | 940g |
| Accessory | Stand ···1, Stand fixing screw ··-2, Zip tie ···2 |
| Option | AC adaptor: AD-1210P, AD-1215P Wall mounting bracket: YC-1001 |
