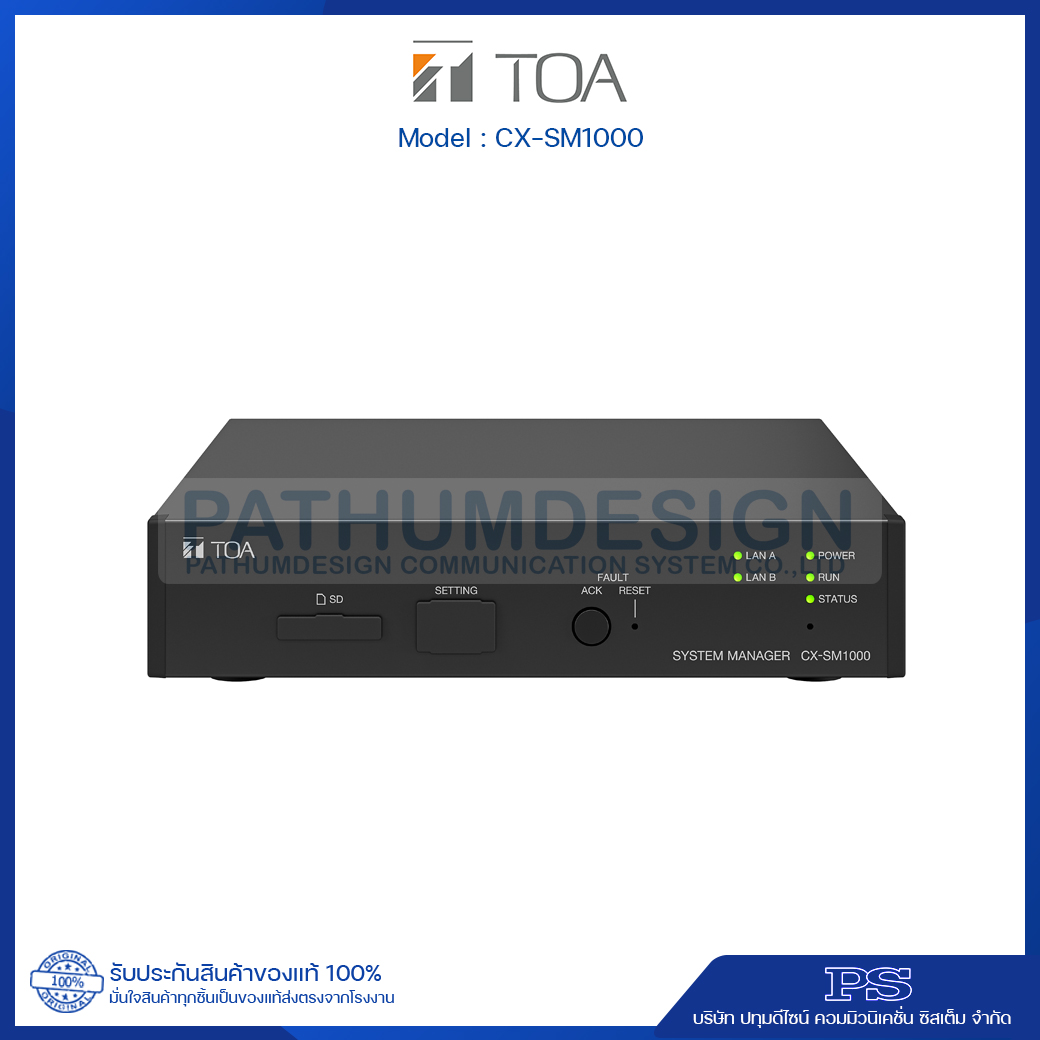

CX-SM1000 System Manager
- Central control unit indispensable for the CX Series system
- Supports up to 15,000 I/O configurations for system-wide integration
- Manages up to 200 audio links for calls and broadcasts
- Dual LAN ports for flexible and reliable network connection
- Compatible with SIP, HTTP, and other standard protocols
- SD card slot for log storage and configuration backup
- Relay and open collector outputs for external control
- Desktop, rack, or wall mountable for flexible installation
- 24 V DC power input with removable terminal block
Specifications
| Model | CX-RM1700 |
| Power Supply | 24 V DC (operating range: 21.6 - 26.4 V DC) Removable terminal block (2 pins) or use of the optional AC adapter |
| Current Consumption | 200 mA |
| Power Consumption | 5 W |
| Network | Network I /F: 100 Base-TX Network protocol: TCP /IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, RSTP, DNS Connector: RJ45 connector x 2 Network cable: UTP (Cat5 or greater) |
| Maximum number of configurations | |
| Audio Input | 3000 channels |
| Audio Output | 3000 channels |
| Speaker Line | 3000 channels |
| Control Input | 12000 channels |
| Control Output | 15000 channels (Normal control output + ATT control output) |
| Maximum Number of Configurations (*1) |
CX-OP1700: 100 units CX-OP1500: 3000 units CX-CL1750: 3000 units CX-CL1550: 3000 units CX-RM1700: 100 units CX-AF1026: 300 units CX-PA 1120/CX-PA 1240: 300 units CX-CC1016: 100 units CX-SM1000: 1 unit (Only 1 unit per system, Indispensable) |
| Number of Audio Links | Maximum 200 links within the system (each 1 link for calls and multi/unicast broadcasts) |
| Operation | LED indicators: LAN (green) x 2, POWER (green) x 1, RUN (green) x 1, STATUS (yellow, red, green) x 1 |
| Control Output | 1 channel, relay contact output, maximum contact capacity: 30 V DC/1.0 A 1 channel, open collector output, maximum contact capacity: 30 V DC/100 mA, removable terminal block (5 pins) |
| SD Section | Setting file upload/download/for log storage Media: SD/SDHC/SDXC (*2) * No SD card provided. |
| Installation Method | Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.) |
| Operating Temperature | 0° c to +40 ° c (32° F to 104° F) |
| Operating Humidity | 90 %RH (no condensation) |
| Finish | Panel, Case: Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 210 (W) X 44.3 (H) X 268 (D) mm |
| Weight | 1.5 kg |
| Accessory | Removable terminal plug (2 pins) ···1, Removable terminal plug (5 pins) ···1, Plastic foot ···4, Screw for fitting plastic foot ···4 |
| Option | AC adaptor: AD-246 Wall mounting bracket: YC-850 Half width blank panel: MB-15B-BK (for rack mounting one CX-SM1000 until Rack joint bracket: MB-15B-J (When mounting the unit on the rack in conjunction with the CX-CC1016) |
