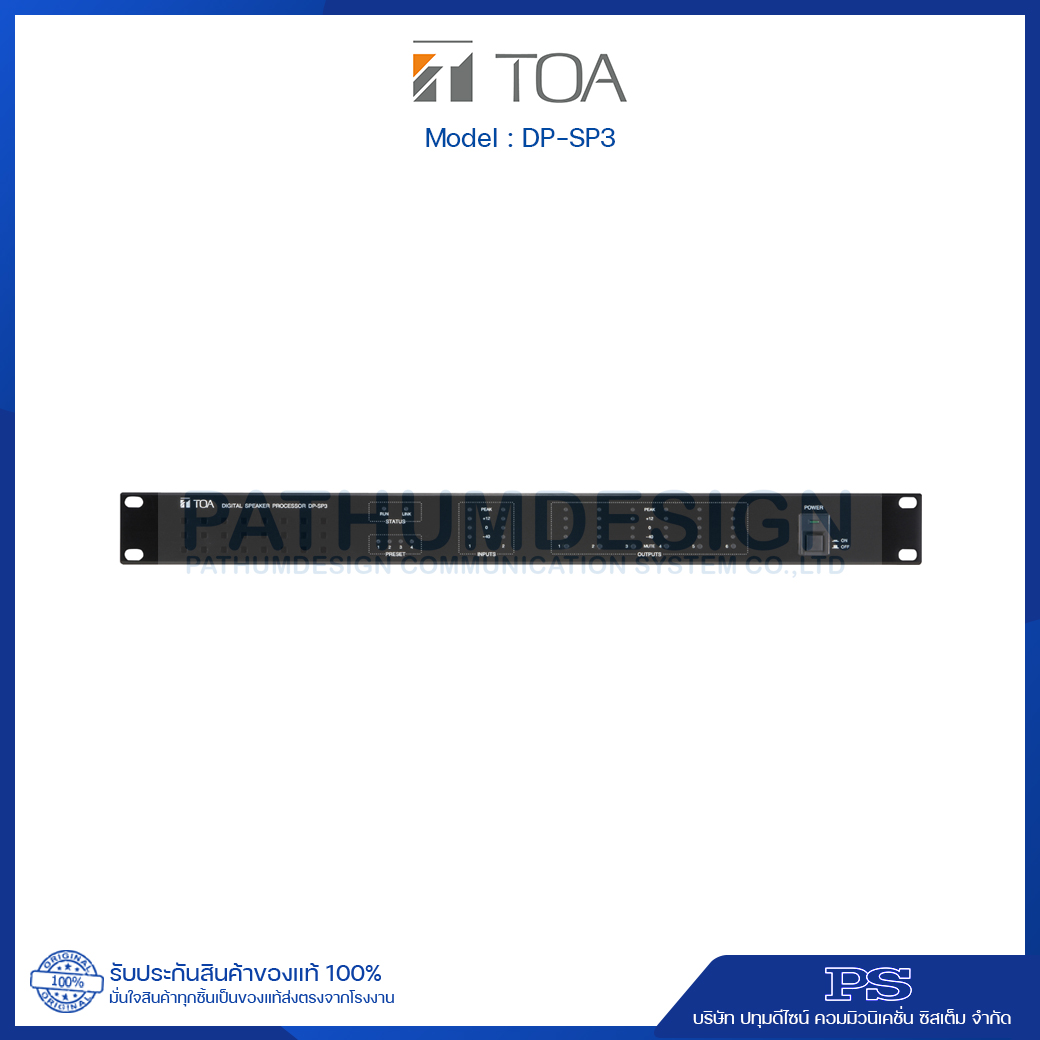

DP-SP3 CE Digital Speaker Processor
- Digital Speaker Processor for clear, high-quality and realistic sound, with a full sense of presence
- Essential audio processing tools: Filters, Compressor, Parametric Equalizer, Output Delay and Mute
- 10 filters on each input and 12 filters on each output, each filter type selectable
- Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
- 2 inputs & 6 outputs, processor can work with a 3-way multi-amp system
Specifications
| Model | DP-SP3 |
| Power Source | 220-240 V AC, 50/60 Hz |
| Power Consumption | 25 W |
| Frequency Response | 20 Hz - 20 kHz, ±1 dB |
| Sampling Frequency | 96 kHz |
| Dynamic Range | 110 dB or more |
| Distortion | 0.03 % or less, 1 kHz, +4 dB* input/output, 20 Hz - 20 kHz BPF |
| Crosstalk | -80 dB or less, 1 kHz |
| Input | 2 channels, +4 dB* (max. +24 dB*), 10 kΩ, electronically-balanced, removable terminal block (3P) |
| Output | 6 channels, +4 dB* (max. +24 dB*), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P) |
| AD Converter | 24 bits |
| DA Converter | 24 bits |
| Preset Memory | 16 |
|
Signal Processing Section
|
|
| Equalizer/Filter | Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267 - 69.249 Filter: High-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Low-pass filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct Notch filter: 20 Hz - 20 kHz, Q: 8.651 - 69.249 All-pass filter: 20 Hz - 20 kHz, Q: 0.267 - 69.249 High-shelving filter: 5 - 20 kHz, ±15 dB Low-shelving filter: 20 - 500 Hz, ±15 dB Horn equalizer: 20 kHz, 0 - 18 dB in 0.5 dB steps |
| Crossover | 2 ways, 3 ways, 4 ways Crossover filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct, -15 to +12 dB, polarity switchable Delay: 0 - 170.656 ms in 0.01 ms steps |
| Compressor | Threshold: -20 to +20 dB* in 1 dB steps Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 7:1, 8:1, 10:1, 12:1, 20:1, infinity:1 Attack time: 0.2 ms - 5 s Release time: 10 ms - 5 s |
| Delay | Delay time: 0 - 682.656 ms in 0.01 ms steps |
| Matrix | 2 × 6 |
| Crosspoint Gain | minus infinity to 0 dB in 1 dB steps |
| Function | Input PAD (-14 dB) control, analog output attenuator (- to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers input/output level indicator (4-point LED indicator), output MUTE switch ×6 |
| Control | |
| Network | Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation) RJ45 connector, connection via switching hub Network protocol: TCP/IP Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better) Maximum cable length: 100 m (109.36 yd) (between DP-SP3 and switching hub) |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH (no condensation) |
| Finish | Panel: Aluminum, hairline, black, Case: Surface-treated steel plate |
| Dimensions | 482 (W) × 44 (H) × 289 (D) mm (18.98" × 1.73" × 11.38") |
| Weight | 3.1 kg (6.83 lb) |
| Accessories | Power supply cord ((2 m (6.56 ft)) ×1, removable terminal plug (3P) ×8, removable terminal plug (5P) ×1, rack mounting screw ×4, |
