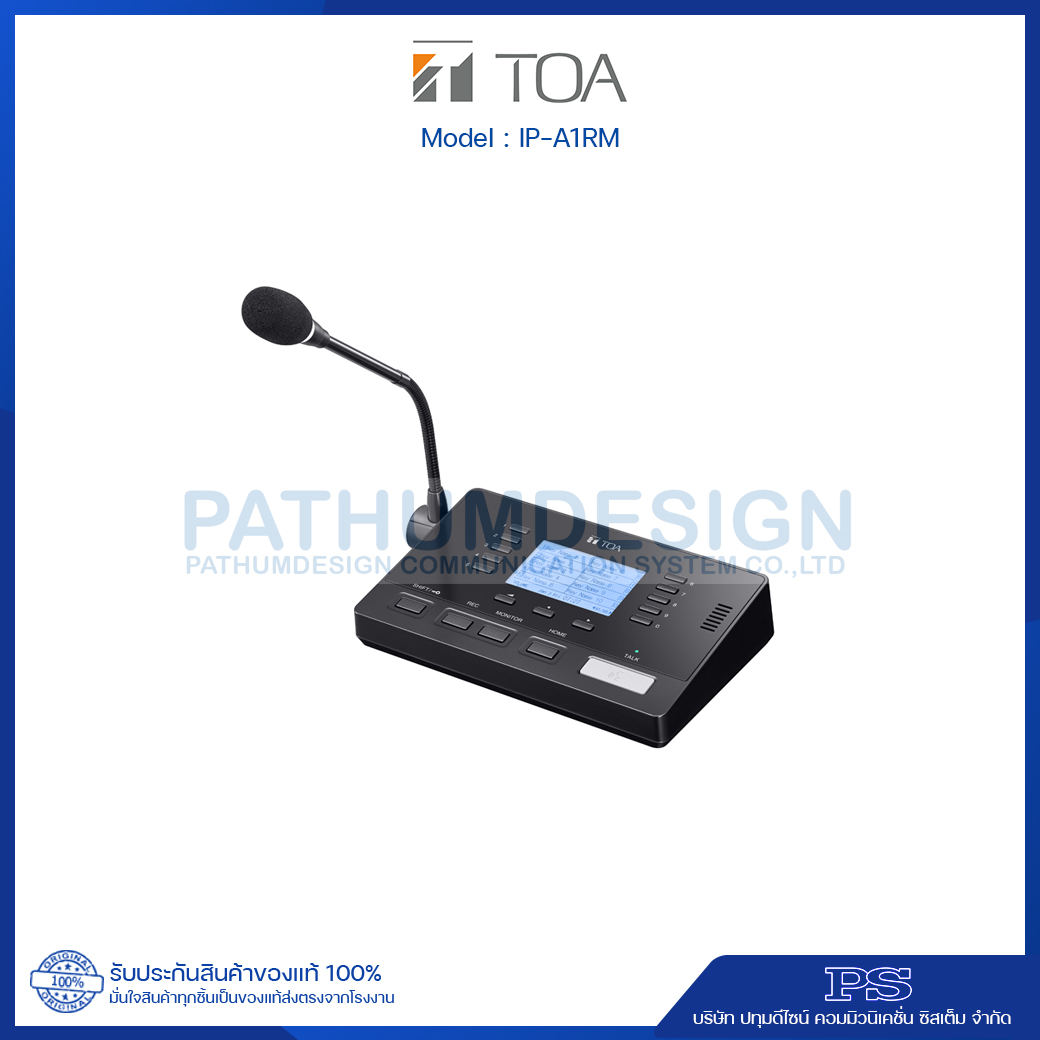

IP-A1RM IP Remote Microphone
เป็นไมโครโฟนไร้สายแบบ IP ที่สามารถใช้เป็นคอนโซลคอวบคุมระบบเสียงสาธารณะ (PA) เพื่อจัดการการประกาศเสียงสด การเล่นข้อความที่บันทึกไว้ การบันทึกและการแสดงตัวอย่างอย่างรวดเร็ว การสื่อสารสองทาง (การสนทนา) และการเปิดใช้งานฟังก์ชันอื่น ๆ
Features
- Angle adjustable gooseneck microphone with compressor effect
- 10 function-assignable keys to initiate broadcasts or controls
- GUI calendar scheduler function (up to 2,000 settings)
- System mute function to mute all broadcasts made by every single IP-A1 series devices within the same network
- 1 AUX audio input (LINE/MIC selectable, phantom power On/Off)
- 2 control inputs, 1 control output and 1 mute contron input
- Independant volume control for microphone and AUX input
- HTTP commands (send/receive)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- PoE powered
Specifications
| Model | IP-A1RM |
| Power Source | PoE (IEEE802.3af Class 3) |
| Power Consumption | 3.5W |
| Audio Transmition Method | SIP broadcasting: Unicast Audio Streaming, Group broadcasting: Multicast Audio Streaming |
| Audio Codec | PCMU(G.711u), PCMA(G.711a), G.722 |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 |
| Network Protocol | TCP/IP, UDP, HTTP, RTP, RTCP, ARP, ICMP, NTP, SIP (RFC3261) |
| Microphone | Unidirectional electret condenser microphone (With microphone indicator and microphone volume control) |
| AUX Input | 1 channel, unbalanced, 10 kΩ, LINE/MIC selectable ( Rated input: LINE: 0 dB (*1), MIC: -60 dB (*1)) PAD function (-20 dB (*1)), AUX volume adjustable, φ3.5 mm mini jack |
| Monitor Speaker | Cone-type speaker, Speaker volume adjustable, Rated Output: 1 W |
| Control Input | 2 channel, no-voltage make contact inputs, open voltage: 5V DC, short-circuit current: 2 mA or less, push-in terminal block |
| Mute Control Input | 1 channel, 24 V DC cut signal, control current 5 mA or less, push-in terminal block |
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, push-in terminal block |
| Operation | Operation key: TALK, HOME, REC, MONITOR, SHIFT /KEY LOCK, Function key: VOLUME, RIGHT, LEFT, Selection key: 0 - 9 |
| Indicator | LCD display: 3 (255 x 160 dots) with backlight, Indicator: Status indicator (green/ blue/ yellow/ red), Microphone indicator (blue), LINK/ACT indicator (green) |
| Manual broadcast/control | Manual broadcasting: Microphone broadcast, Recorded audio broadcasting, AUX input broadcast Manual control: control output, command set transmission, Control trigger: key operation |
| Internal Message | Max. 20 messages (Max. recording capacity: 80 MB), Supported file format: WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo, Repeat playback: Playcount (1-10 times) or Duration (5-3600 sec) Interval time: 0-99 sec, Delay time: 0-99 sec, Control trigger: key operation, scheduler, control input, remote API (HTTP) |
| Recorded audio broadcast | Audio recording and playback broadcast with the built-in microphone, Max. 2 minutes, 1 message |
| Chime | Pre and post-chime tones (applied for manual broadcast and internal audio file broadcast), Preset chime tone x5, editable tone x2 |
| Scheduler | Scheduled broadcasting and control by WEB-UI (Max. schedule settings:2000) Configurable actions: Internal message broadcast, audio input broadcast, control output, command set transmission |
| Event | Execute event triggered by control input Configurable actions: Internal message broadcast, audio input broadcast, command set transmission, broadcast disable, system mute |
| Command Set | 20 commands can be registered in each of 10 command sets |
| Clock Accuracy | ±13 seconds per month |
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 °C (104 °F)) |
| Language | English / Japanese |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, black, paint |
| Dimensions | 224 (W) X 47.2 (H) X 136 (D) mm ( 8.82" x 1.86" x 5.35") ( excluding microphone) |
| Weight | 630 g (1.39 lb) |
| Accessory | Zip tie ...2 |
| Option | Option |
